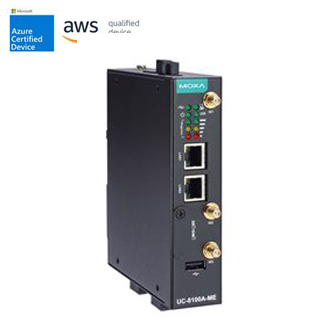

UC-8100A-ME-T Series
Arm Cortex-A8 1 GHz IIoT gateways with built-in LTE Cat. 4, -40 to 70°C operating temperature
Features and Benefits
- Armv7 Cortex-A8 1000 MHz processor
- Dual auto-sensing 10/100 Mbps Ethernet ports
- SD slot for storage expansion
- Programmable LEDs and a programmable button for easy installation and maintenance
- LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
- -40 to 70°C wide-temperature range with LTE enabled
- Long-term Linux support until 2027; includes bug fixes and security patches
Certifications
DATASHEET DOWNLOAD GET A QUOTE
Introduction
The UC-8100A-ME-T computing platform is designed for embedded data acquisition applications. The computer comes with dual RS-232/422/485 serial ports and dual 10/100 Mbps Ethernet ports to help users efficiently adapt the UC-8100A-ME-T to a variety of complex communications solutions.
The UC-8100A-ME-T is built around a Cortex-A8 processor that has been optimized for use in energy monitoring systems, but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.
Wide-temperature and LTE-enabled models are available. All units are thoroughly tested in a testing chamber, guaranteeing that the LTE-enabled computing platforms are suitable for wide-temperature applications.

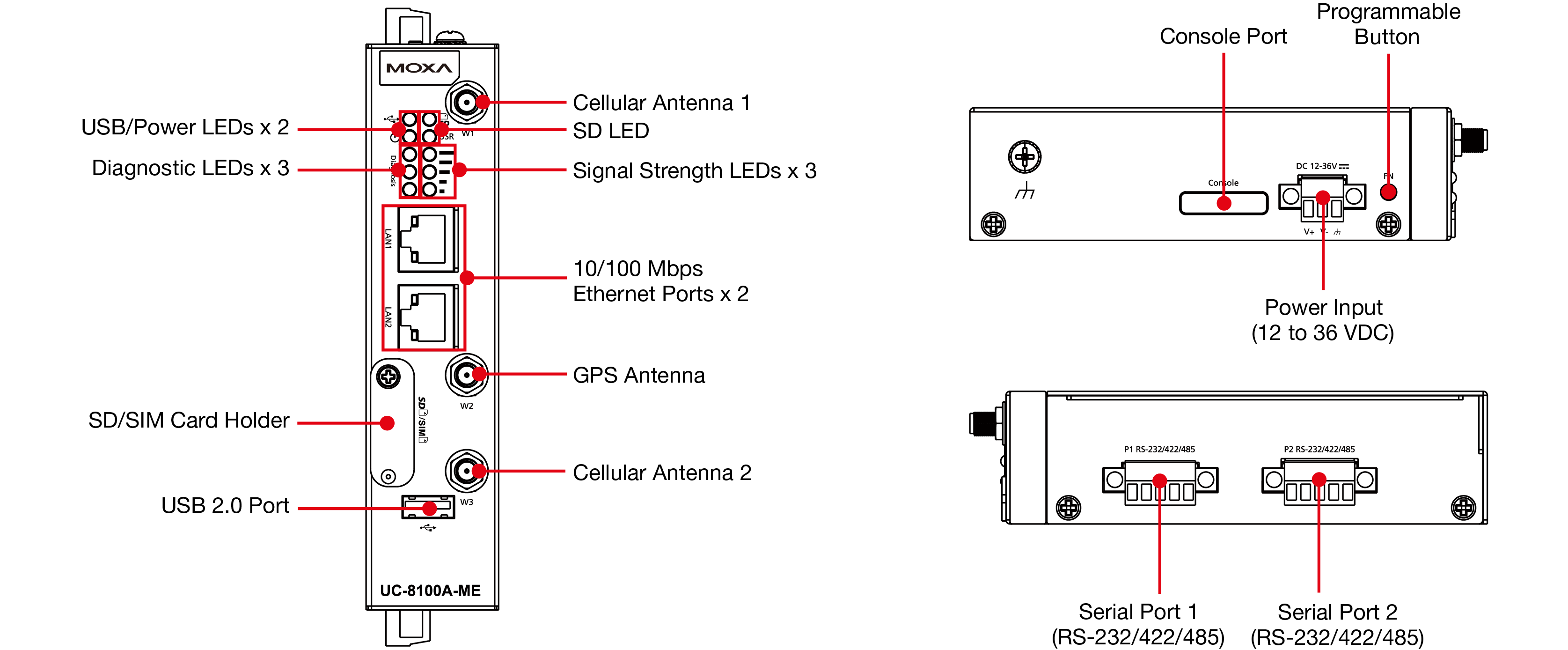

Appearance
