Embedded Computing / Rackmount Computer / DA-681C Series

DA-681C Series

Intel® 7th Gen Core™ CPU, IEC-61850, 1U rackmount computer with 6 Gigabit Ethernet ports, 12 isolated serial ports

DA-681A

Features and benefits:

  • IEC 61850-3, IEEE 1613, and IEC 60255 compliant for power substation automation systems
  •  EN 50121-4 compliant for railway wayside applications
  •  7th Generation Intel® Core™ Processor
  •  DDR4 memory slot; up to 32 GB capacity
  •  Redundant power supply (100 to 240 VAC/VDC)

Certifications

  • moxa-iec61850-3-ieee1613-black-certification-logo-image.png | Moxamoxa-en50121-4-certification-logo-image.png | Moxamoxa-ce-certification-logo-image.png | Moxamoxa-ul-rec-certification-logo-image.png | Moxa
  •

DATASHEET DOWNLOAD   GET A QUOTE


Introduction

The DA-681C computer is built around an Intel® Celeron® or Intel® Core™ i3 CPU and comes with dual display ports (2 x HDMI), 5 USB ports, 6 Gigabit LAN ports, two 3-in -1 RS-232/422/485 serial ports, 10 RS-485 serial ports, 6 digital input ports, and 2 digital output ports. Additionally, one 2.5” HDD/SSD slot and one mSATA slot are included to enable storage expansion for industrial applications that require large storage space for edge data acquisition.

With IEC 61850-3 and IEEE 1613 compliance, the DA-681C is sure to deliver stable and reliable system operation for power applications. EN 50121-4 compliance confirms that the DA-681C can deliver stable and reliable system operations in rail wayside applications, such as station SCADA systems, wayside disaster prevention, traction power, and signaling and safety systems, to provide an integrated view of your smart rail setup.


Appearance

Front View

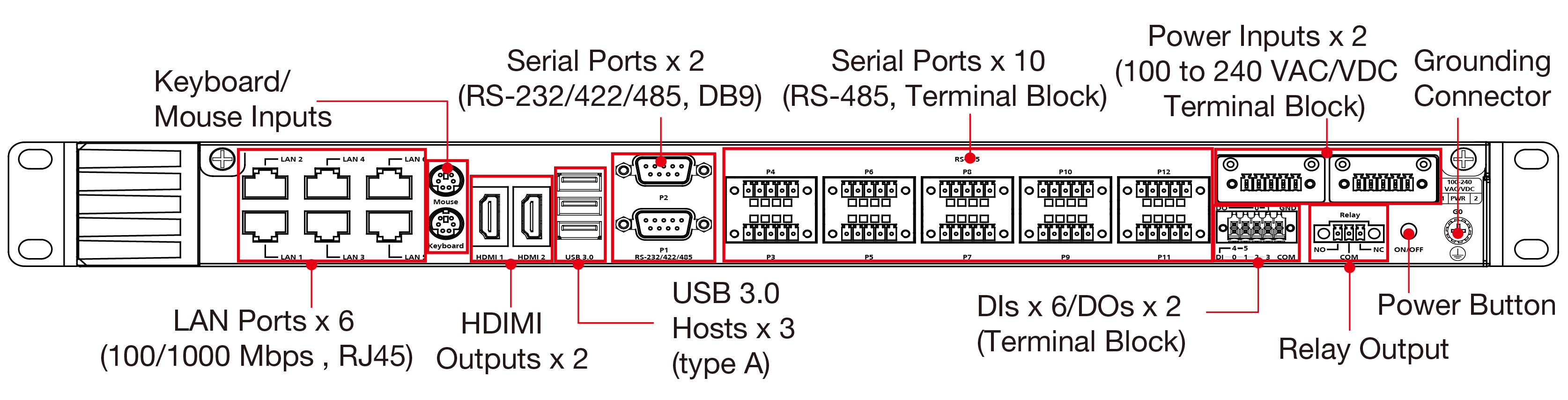

Rear View
