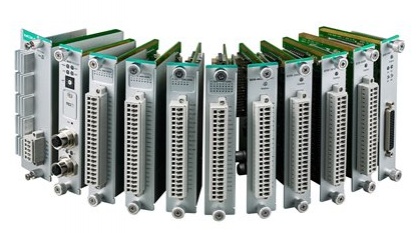

ioPAC 8600 Series Expansion Modules

i/O Modules for ioPAC 8600 series modular programmable controllers

Features and benefits:

• 86M-1620D-T: 16 digital inputs, 24 to 110 VDC, channel LED, sink type
• 86M-1832D-T: 8 channel-to-channel isolated DIs, 24 VDC, channel LED, sink/source type
• 86M-2604D-T: 6 relays, channel LED, form A (N.O.) type
• 86M-2830D-T: 8 channel-to-channel isolated DOs, 24 VDC, channel LED, sink-type
• 86M-4420-T: 4 analog outputs, 0 to 10 V or -10 to 10 V or 0 to 20 mA or 4 to 20 mA
• 86M-5212U-T: 2-port 2-wire Ethernet switch
• 86M-5250-T: 2 CAN ports, channel LED

Certifications

•



   GET A QUOTE

---

Introduction

Moxa’s 86M series modules with ch-to-ch isolated DIs, ch-to-ch isolated DOs, relays, and AOs provide more I/O options for the ioPAC 8600 series. Combined with 85M modules, enough options are now available to allow users to select the best I/O combination for their target application. All 86M modules are designed for railway industry applications, and as such are compliant with EN 50121-3-2, EN 50121-4, and EN 50155. In addition, the modules support a wide operating temperature range of -40 to 75°C.
