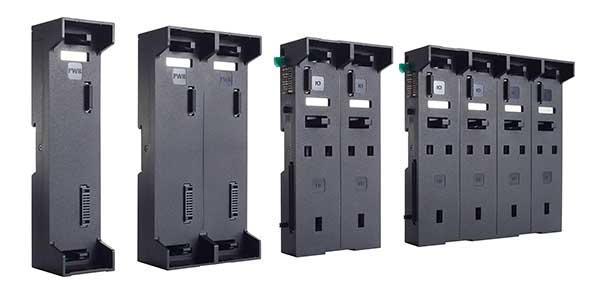

ioPAC 6500 Series (65M) Backplane Modules
Backplane modules for modular programmable IIN controllers
Features and benefits:
- Tool-free hardware installation and hot-swap design for maximizing operation efficiency
- Fully modular design for maximum deployment flexibility
- 2 x 2 pin grid design to prevent erroneous installations
Certifications
DATASHEET DOWNLOAD GET A QUOTE
Introduction
The ioPAC 6500 Series (also referred to as Intelligent Integrated Node or IIN) is an advanced Linux-based RTU featuring a built-in Layer-2 managed switch. Equipped with an Arm Cortex-A53 quad-core CPU, the ioPAC 6500 Series delivers robust performance.

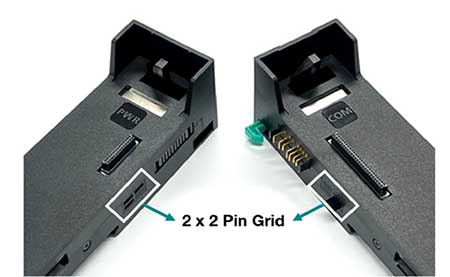

Error-proof Design—2 x 2 Pin Grid
The backplane module need to be assembled in the sequence: PWR > COM > CPU > EXP > IO. The 2 x 2 pin grid ensures that there is no error during installation and the correct assembly sequence is used.
Fully Modular Design
The ioPAC 6500 Series features a unique Lego-like mechanical design that allows for flexible deployment while minimizing installation efforts. The series can be divided into the components: Backplane modules, power modules, communication modules, expansion modules, CPU modules, I/O modules, and terminal-block modules.
