Industrial Ethernet / Unmanaged Switch / EDS-2005-ELP Series

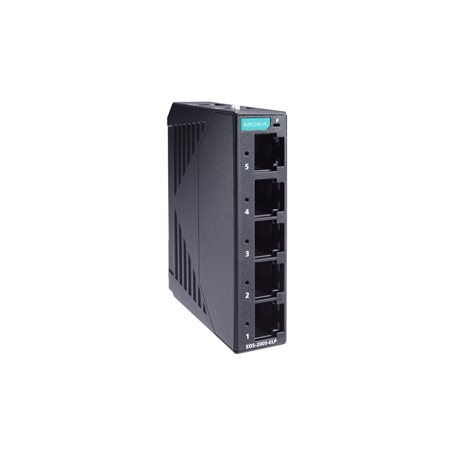

EDS-2005-ELP Series

5-port entry-level unmanaged Ethernet switches with plastic housing

* New Launch Promotion - 20% OFF - valid till 15 Jul 2020 or while stock lasts. Get a Quote now!

Features and Benefits

  •  10/100BaseT(X) (RJ45 connector)
  •  Compact size for easy installation
  •  QoS supported to process critical data in heavy traffic
  •  IP40-rated plastic housing

Certifications



DATASHEET DOWNLOAD   GET A QUOTE


Introduction

The EDS-2005-ELP series of industrial Ethernet switches have five 10/100M copper ports and a plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel.

The EDS-2005-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2005-EL Series has a standard operating temperature range of -10 to 60°C.
