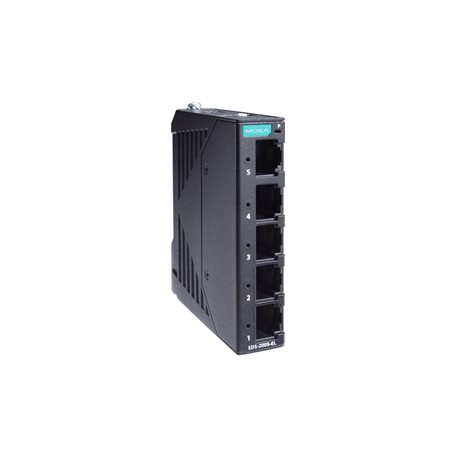

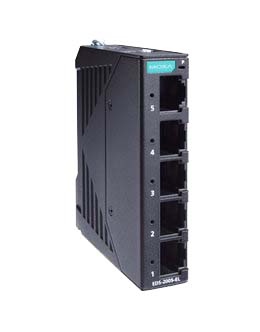

EDS-2005-EL Series

5-port entry-level unmanaged Ethernet switches with metal housing

Features and Benefits

  • 10/100BaseT(X) (RJ45 connector)
  •  Compact size for easy installation
  •  QoS supported to process critical data in heavy traffic
  •  IP40-rated metal housing
  •  -40 to 75°C wide operating temperature range (-T models)

Certifications



DATASHEET DOWNLOAD   GET A QUOTE


Introduction

The EDS-2005-EL series of industrial Ethernet switches have five 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2005-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.

The EDS-2005-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2005-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
