- 1. Only available for -4XGS models.
- 2. Only available for 18 and 28 port models.
- 3. Only available for the non-4XGS models.
- 4. Only available for -LV and PoE models.
- 5. Only available for -LV models.
- 6. Only available for 10 and 18 port models.

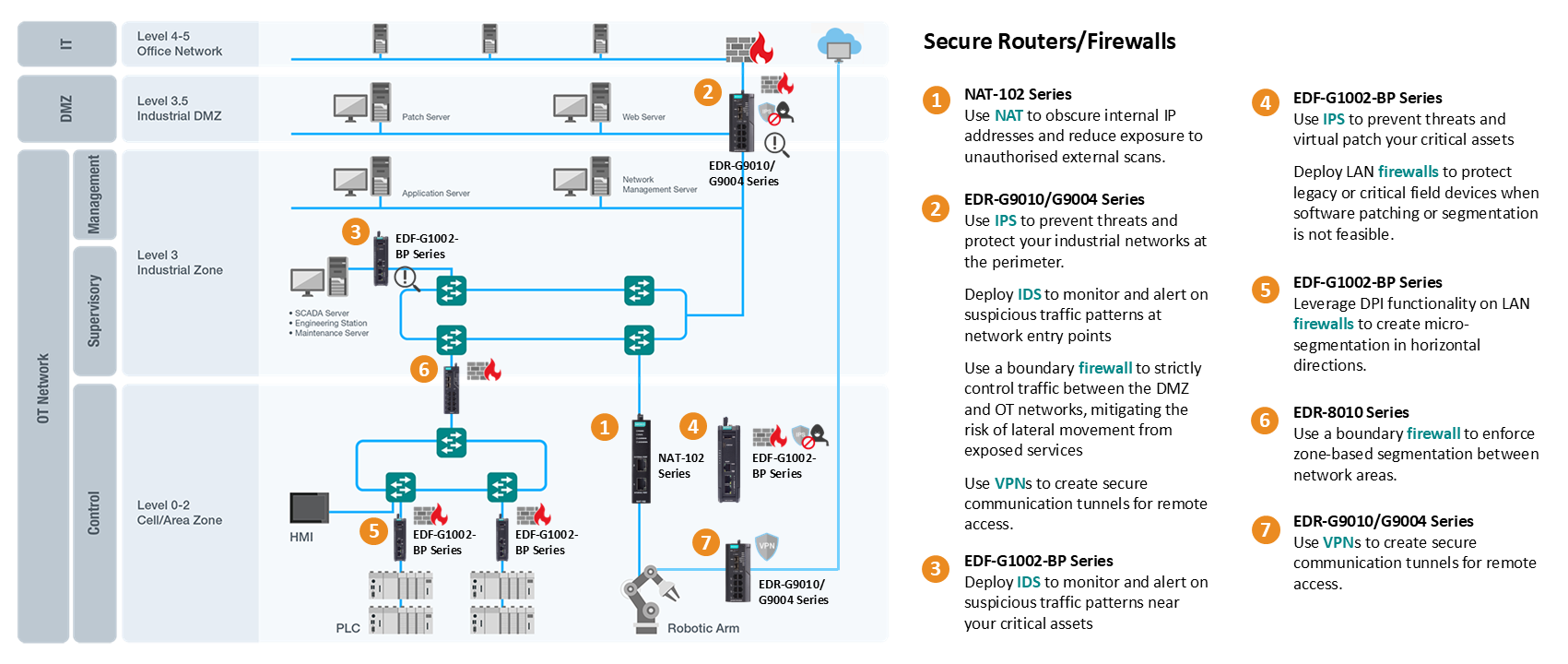

Secure Routers
Secure Routers |
EDR-G9010 |
EDR-G9004 |
EDR-8010
|

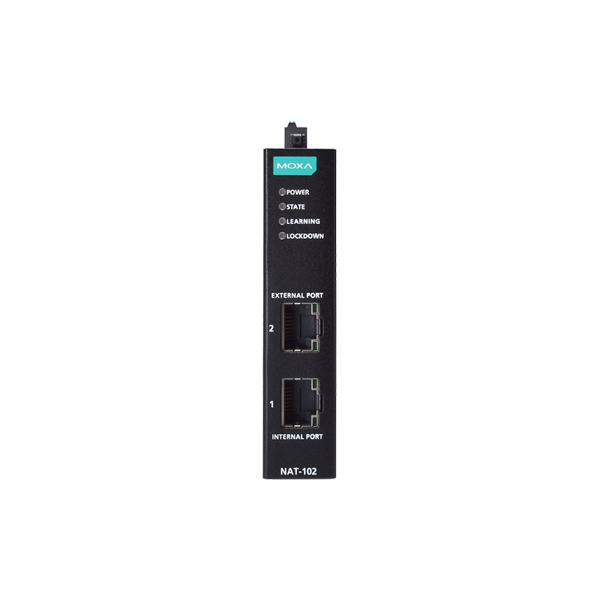

NAT-102
|

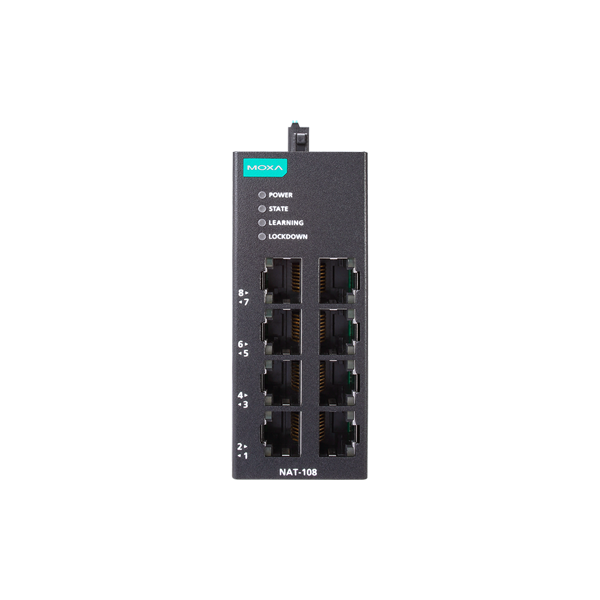

NAT-108
|
Ports | 2 2.5GbE + 8 GbE1 | Up to 2 2.5GbE + 2 GbE (1/2 DMZ/WAN ports) | 2 GbE + 8 FE1 | 2 FE | 8 FE |
NAT |
1-to-1, N-to-1, NAT loopback, Port forwarding, IP Twins Mapping4 |
||||
Firewalls |
DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports |
IP address, MAC address (Device Lockdown), Ports |
|||
IPS/IDS |
Requires an additional license |
- |
- |
||
DPI |
DNP3, EtherNet/IP, IEC 60870-5-104, IEC 61850 MMS, Modbus TCP, Modbus UDP, Omron FINS, Siemens S7 Comm., Siemens S7 Comm. Plus, OPC UA, MELSEC communication protocol |
- |
- |
||
VPN | Up to 250 IPsec VPN tunnel | Up to 50 IPsec VPN tunnels | - | - | |
Routing Throughput (based on RFC 2544) | Max. 350K packets per second / 2 Gbps | Max. 50K packets per second / 500 Mbps | Max. 15K packets per second /100 Mbps | ||
Redundancy Protocols | VRRP, Turbo Ring, Turbo Chain, RSTP/STP | VRRP | VRRP, Turbo Ring, Turbo Chain, RSTP/STP | - | - |

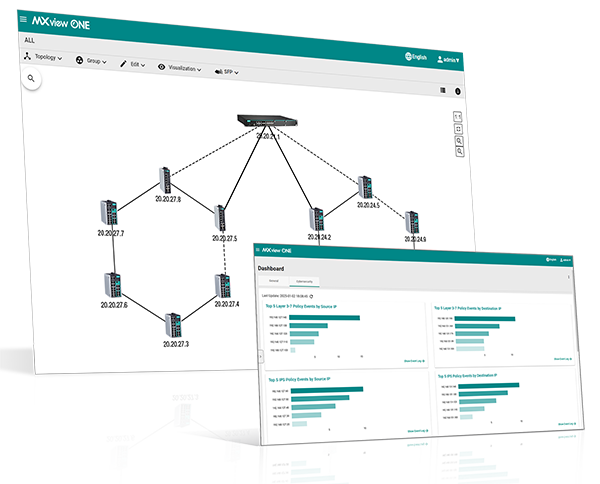

Software Management | MXview One, MXview Security3, MXsecurity | MXview One | |||
Industrial Certifications | IEC 62443-4-2 SL2, IEEE 1613, IEC 61850-3 Ed. 2.0, ATEX2, CID22, EN 50121-42, NEMA TS22, DNV2, DNV IEC 61162-460 Edition 3.02, DNV security profile 22, IACS UR E27 Rev.12, IEC 609452 | IEEE 1613, IEC 61850-3 Ed. 2.0, ATEX, CID2, IECEx, EN 50121-4, NEMA TS2, DNV | IEEE 1613, IEC 61850-3 Ed. 2.0, ATEX, CID2, IECEx, EN 50121-4, NEMA TS2, DNV, DNV IEC 61162-460 Edition 3.0, DNV security profile 2, IACS UR E27 Rev.1, IEC 60945 | EN 50121-4, NEMA TS2, ATEX, CID2 | - |
- 1. Supports user-configurable DMZ/WAN ports.
- 2. Only available for -LV models.
- 3. An active MXview One license is required in order to activate the MXview Security add-on license.
- 4. NAT-108 Series only.
LAN Wirewalls
LAN Firewalls |

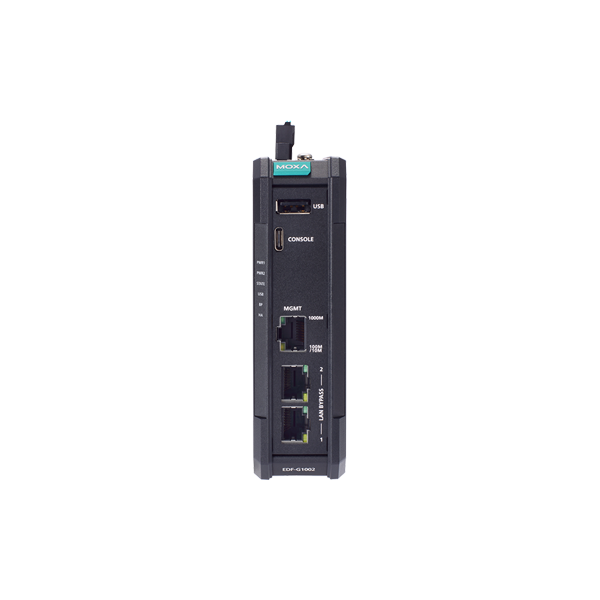

EDF-G1002-BP |
|
Ports | 2 GbE (Gen3 LAN Bypass) | |
Firewalls | DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports | |
IPS/IDS | Enabled by default. IPS pattern update functionality requires an additional license. | |
DPI | DNP3, EtherNet/IP, IEC 60870-5-104, IEC 61850 MMS, Modbus TCP, Modbus UDP, Omron FINS, Siemens S7 Comm., Siemens S7 Comm. Plus, OPC UA, MELSEC communication protocol | |
Software Management | MXview One, MXview Security1, MXsecurity | |
Industrial Certifications | NEMA TS2, EN 50121-4, CID2, ATEX, IECEx, DNV |
- 1. An active MXview One license is required in order to activate the MXview Security add-on license.
