Rugged Panel Computers for Extreme Outdoor and Hazardous Environments
Harsh and hazardous environments, both indoor and outdoor, present numerous challenges, including extreme temperatures—from scorching heat to freezing cold—high levels of dust, water exposure, and even explosive atmospheres. To safely and effective control and monitor industrial applications in these environments, our new-generation MPC-3000 Series panel PCs offer robust, adaptable, and rugged solutions, specifically optimized for oil and gas, marine, and outdoor applications.

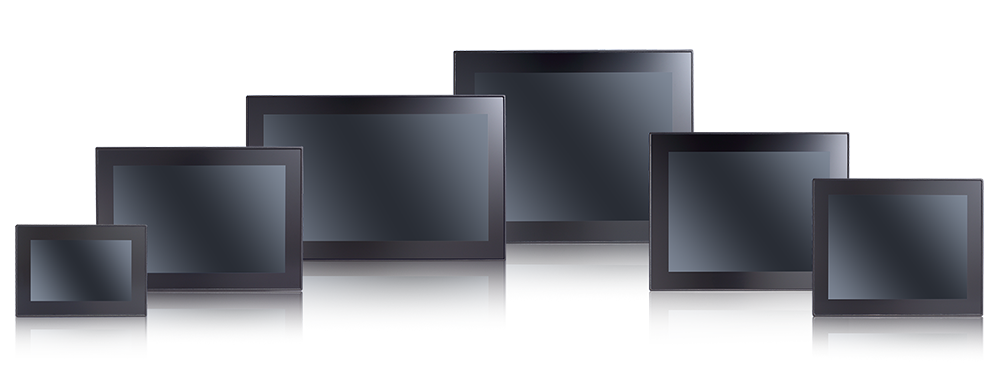

Powered by an Intel Atom® x6000E processor, the MPC-3000 panel computers are organized in six unique series with display sizes ranging from 7 to 15.6 inches, all engineered to excel in extreme conditions to enhance productivity and reliability. The panel PCs also come with an extensive range of industrial certifications, including CID2, IECEx Zone 2 and ATEX Zone 2 as well as for marine standards such as DNV, IEC 60945, and IACS E10.
Why Moxa
Industrial-grade Rugged Design for Reliable Operations
Featuring a fanless design and glove-friendly multi-touch screens, our MPC-3000 panel PCs boast a IP66 metal housing and an operating temperature range -30 to 60°C perfect for outdoor and hazardous applications.
Industry Certifications for
Performance and Safety
CID2, ATEX, IECEx, and DNV certifications ensure our MPC-3000 panel computers meet stringent requirements for a range of industrial applications.
Modular Design for Easy Maintenance
The modular design with minimized cabling simplifies maintenance, offering a cableless approach on the front and rear panels that reduces downtime and enhances operational efficiency.

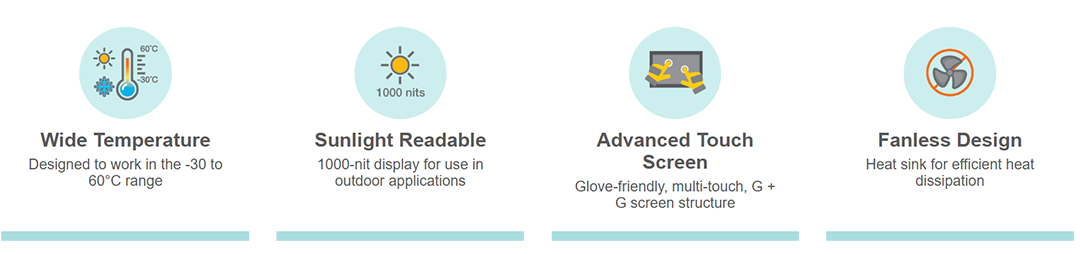

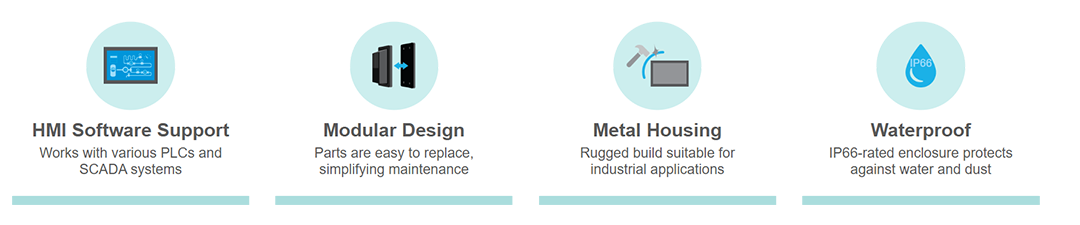

Key Features
Engineered for the Extremes
Experience the rugged performance of the MPC-3000 panel computers designed for industrial automation and monitoring in the toughest environments. Watch this video to explore the key features that include exceptional screen readability, enhanced touchscreen responsiveness, and modular design that simplifies maintenance.

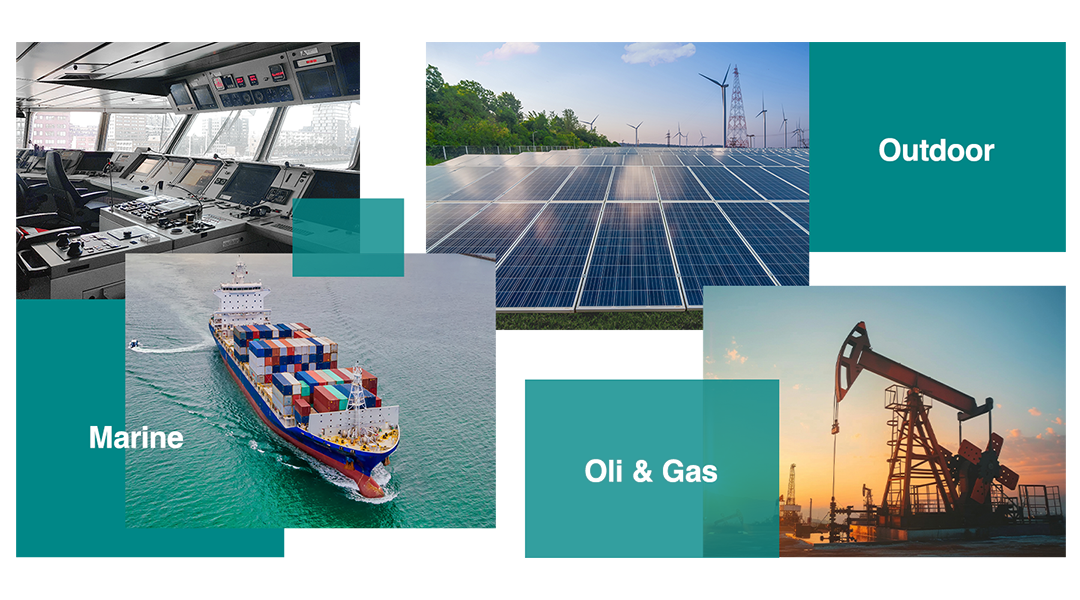

Applications
Our new-generation MPC-3000 panel computers are engineered to perform in some of the most rugged and challenging environments across various industries. The glove-friendly advanced touchscreen, wide operating temperature range, and IP66 enclosure enable their safe use in explosive atmospheres at drilling rigs for seamless monitoring and control in oil and gas applications. The MPC-3000 panel computers are DNV certified for safe operations of alarm and monitoring systems in engine rooms of marine vessels. For outdoor application, the MPC-3000 industrial-grade panel computers offer reliable performance for remote monitoring and data acquisition in solar power plants and EV charging stations, operating effectively across a wide temperature range with sunlight-readable displays.
Industrial Panel Computers
MPC-3000 Series |
|
|
|
|
|
|
| CPU | E2 models: Intel Atom® x6211E Elkhart Lake
(dual-core, 1.30 GHz) E4 models: Intel Atom® x6425E Elkhart Lake (quad-core, 2.0 GHz) |
|||||
| Ethernet Ports | 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) | |||||
| Serial Ports | 2 x RS-232/422/485 ports (software-selectable, DB9 male connector) | |||||
| USB 3.0 | 2 x USB 3.0 hosts (type-A connector) | |||||
| Light Intensity (Brightness) | 400 / 1000 nits | |||||

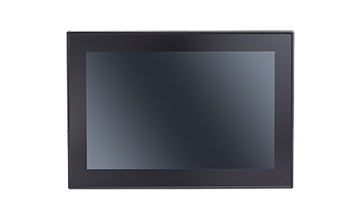

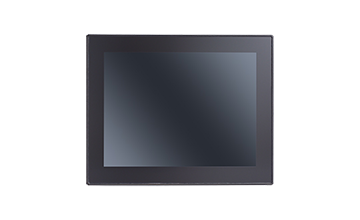

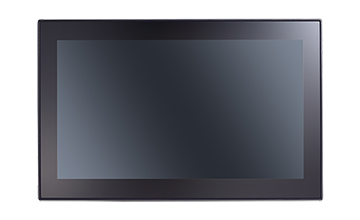

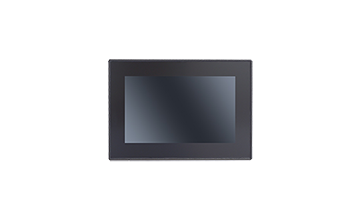

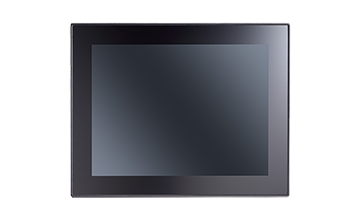

| Panel Size | 7 in (5:3) | 10.4 in (4:3) | 12.1 in (4:3) | 12.1 in (16:10) | 15 in (4:3) | 15.6 in (16:9) |
| Pixels | 800 x 480 | 1024 x 768 | 1024 x 768 | 1280 x 800 | 1024 x 768 | 1920 x 1080 |
| Touch Type | Projective capacitive (PCAP) touchscreen | |||||
| Input Voltage | 12/24 VDC | |||||
| IP Rating | IP66 (front), IP20 (rear) | |||||
| Operating Temperature | -30 to 60°C (-22 to 140°F) | |||||
| Standards and Certifications | CID2, ATEX Zone 2, IECEx Zone 2, DNV-CG-0339, IEC
60945, IACS E10, IEC 62368-1, UL 62368-1, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-61 |
|||||
1 Certification processes underway.
