Serial To Ethernet / NPort Device Servers / NPort 5210A/5230A/5250A Series

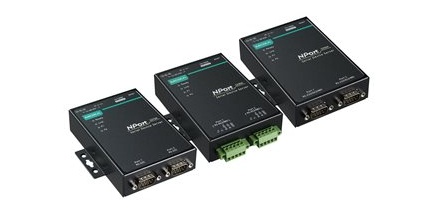

NPort 5210A/5230A/5250A Series

2-port advanced RS-232/422/485 serial device servers

NPort 5210A/5230A/5250A Series

Features and Benefits

  • World’s lowest power consumption
  • Speedy 3-step web-based configuration
  • Surge protection for serial, Ethernet, and power lines
  • COM port grouping and UDP multicast applications
  • Screw connectors for secure installation
  • Dual DC power inputs with power jack and terminal block
  • Versatile TCP and UDP operation modes

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxamoxa-ce-certification-logo-image.png | Moxamoxa-fcc-certification-logo-image.png | Moxa
  •

DATASHEET DOWNLOAD WHITE PAPER (PDF)   GET A QUOTE


Introduction

The NPort 5200A device servers are designed to make serial devices network-ready in an instant and give your PC software direct access to serial devices from anywhere on the network. The NPort 5200A device servers are ultra lean, ruggedized, and user friendly, making simple and reliable serial to Ethernet solutions possible.

A Greener Serial-to-Ethernet Solution

The Moxa MiiNe is a small but powerful ARM-based serial-to-Ethernet SoC with RAM and Flash embedded. With the MiiNe inside, the NPort 5200A series becomes the lowest power consumption device server in the world. The NPort 5200A series saves at least 50% on power consumption compared to existing solutions on the market, helping engineers meet the tough environmental compliance challenges found in today’s industrial environments.

Surge-protected Serial, Ethernet, and Power Lines

Surge, which is typically caused by high voltages that result from switching and lightning transients, is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort 5200A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This state-of-the-art surge protection provides a robust serialto-Ethernet solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions.

3-step Web-based Configuration

The NPort 5200A’s 3-step web-based configuration tool is straightforward and user-friendly. The NPort 5200A’s web console guides users through 3 simple configuration steps that are necessary to activate the serial-to-Ethernet application. With this speedy 3-step web-based configuration, a user only needs to spend an average of 30 seconds to complete the NPort settings and enable the application, saving a great amount of time and effort.

COM Port Grouping

The NPort 5200A’s COM Grouping function allows you to create a COM Group and redirect data from it to several physical COM ports on NPort device servers. With COM Grouping, you will be able to control multiple physical serial ports simultaneously by operating only one COM port.
