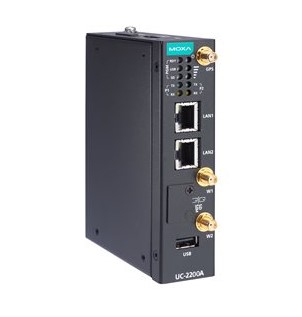

UC-2200A Series

Arm Cortex-A53 dual-core 64-bit 1-GHz industrial computers with built-in LTE Cat. 4 module, -40 to 70°C operating temperature

UC2200A

Features and Benefits

  • Armv8 Cortex-A53 dual-core 1 GHz processor
  • 2 auto-sensing 10/100/1000 Mbps Ethernet ports
  • Rich programmable LEDs and a programmable button for easy installation and maintenance
  • LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
  • -40 to 75°C operating temperature range
  • Long-term Linux support until 2031; includes bug fixes and security patches

Certifications

DATASHEET DOWNLOAD    GET A QUOTE


Introduction

The UC-2200A computing platform is designed for embedded data acquisition applications. The computer comes with dual RS-232/422/485 serial ports and dual 10/100/1000 Mbps Ethernet ports, as well as a Mini PCIe socket to support a wireless module. These versatile capabilities let users efficiently adapt the UC-2200A to a variety of complex communications solutions.

The UC-2200A is built around a Cortex-A53 processor that has been optimized for use in energy monitoring systems, but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.

Wide-temperature and LTE-enabled models are available. All units are thoroughly tested in a testing chamber, guaranteeing that the LTE-enabled computing platforms are suitable for wide-temperature applications.

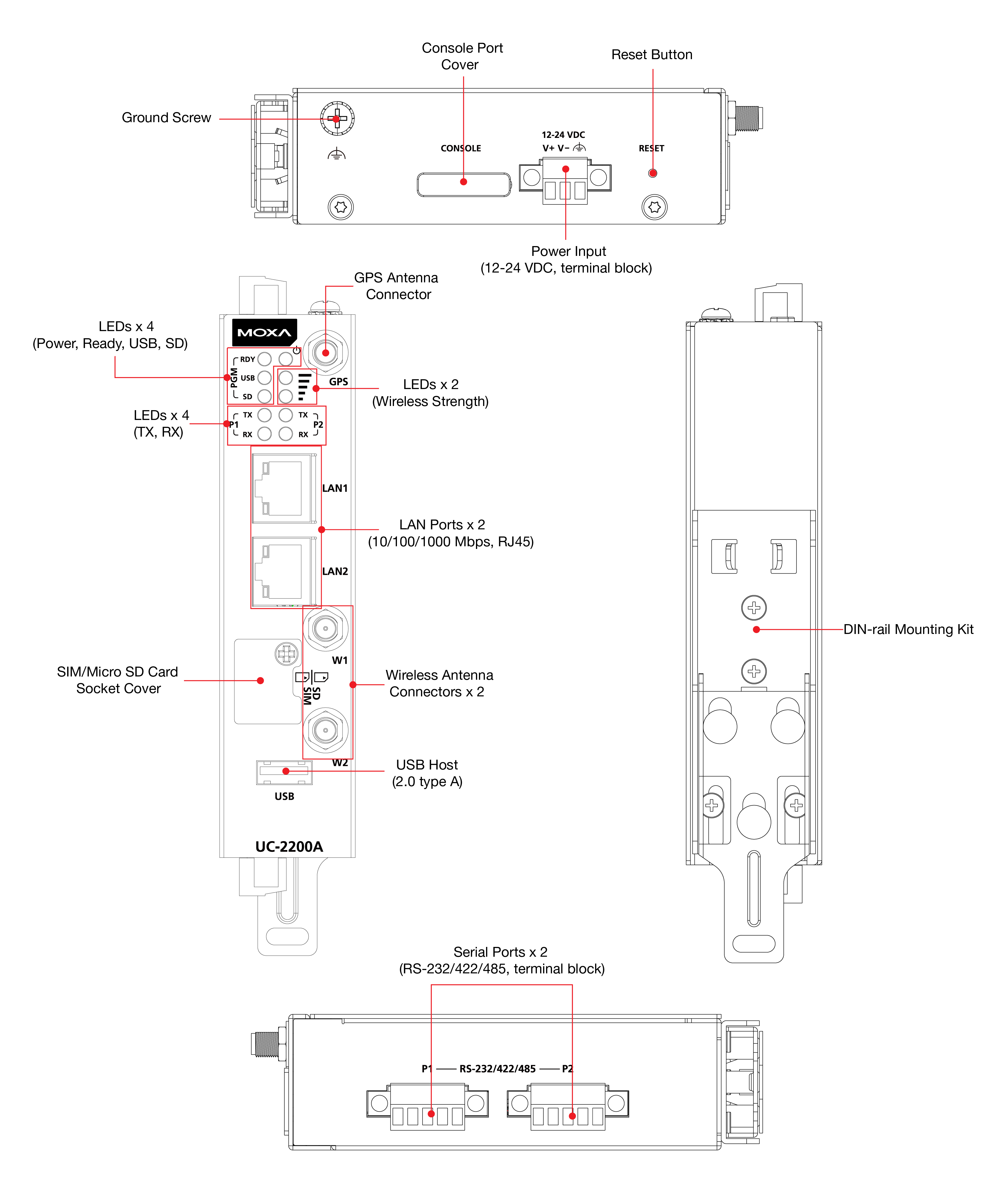

Appearance
