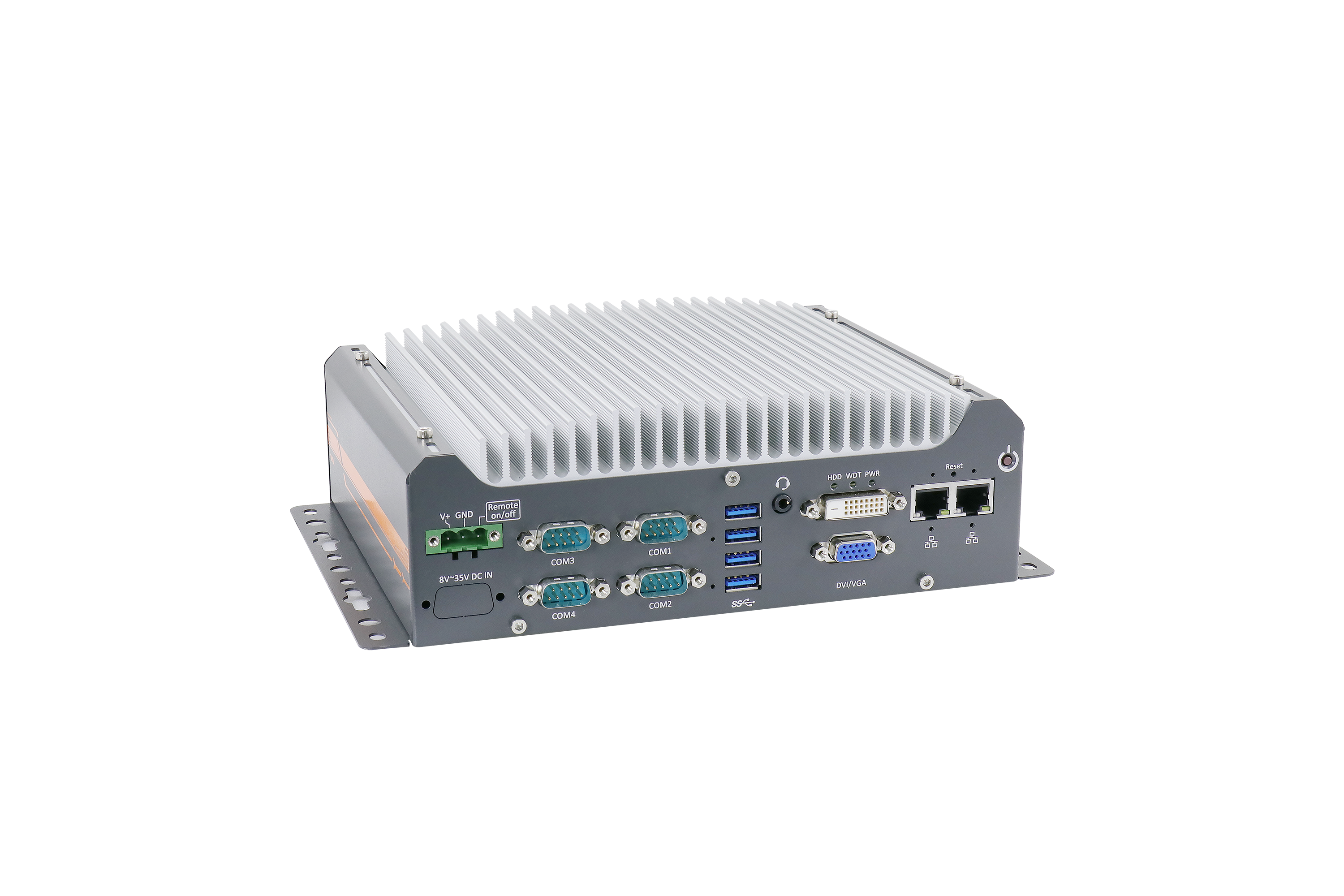

Nuvo-7501 Series

Intel® 9th/ 8th -Gen Core™ i7/i5/i3 Compact Fanless Computer with 2x GbE and 4x COM Ports

Features and Benefits:

• Compact 255 x 173 x 76 mm footprint
• Intel® 9th/ 8th-Gen Core™ 35W LGA1151 CPU
• Rugged, -25°C to 60°C fanless operation
• 2x GbE and 4x USB 3.1 Gen1
• 2x RS-232/422/485 and 2x RS-232 ports
• VGA + DVI dual display outputs
• Supports 1x M.2 2280 SSD (SATA signal)
• Supports 1x 3.5" or 2.5" SATA HDD/ SSD

Certifications

DATASHEET DOWNLOAD  GET A QUOTE

---

Introduction

Nuvo-7501 is a cost-effective, compact and yet powerful fanless embedded computer with a 255 x 173 x 76 mm footprint. Powered by an Intel® 9th/ 8th-Gen Core™ hexa/ octa core CPU, it offers more than 50% computation performance improvement over the previous generation.

Nuvo-7501 is designed to be simple and compact while retaining essential elements of a rugged embedded fanless solution. It features I/Os such as 2x GbE, 4x USB 3.1 Gen1 and 4x COM ports for common industrial applications. In addition to the M.2 2280 SATA slot (SATA signal) and can also support a 2.5" SSD/ HDD or a 3.5" HDD. Its' derivative model, Nuvo-7505D, offers isolated DIO and isolated COM, which can protect the controller against ground loops in harsh environments.

The Nuvo-7501 has retained quality materials all Neousys systems utilize and the design flow/ stringent test procedures it must endure. It is a fanless embedded platform that has hit the sweet spot in terms of cost, size and performance. Nuvo-7501 is an ideal fanless embedded solution for various industrial applications.



---
