Industrial Computing / Fanless Computer / Nuvo-7000E/P/DE

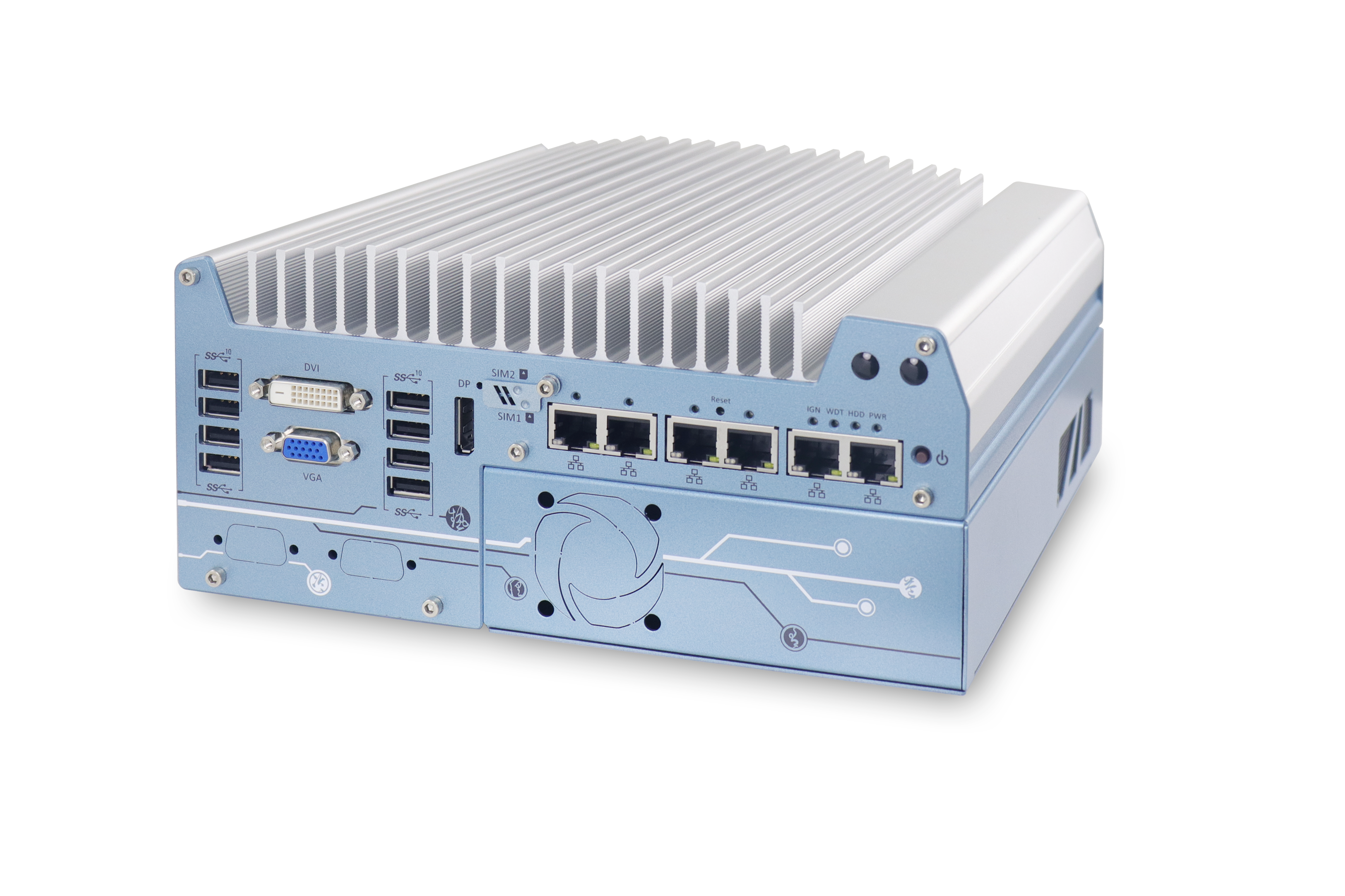

Nuvo-7000E/P/DE Series
Intel® 9th/ 8th-Gen Core™ i7/i5/i3 fanless rugged embedded computer with 6x GbE, patented cassette & MezIO™ interface
Features and Benefits:
- Intel® 9th/ 8th-Gen Core™ i 35W/ 65W LGA1151 CPU
- Patented Cassette for PCI/PCIe add-on card accommodation
- MezIO™ interface for easy function expansion
- Rugged, wide temperature range from -25°C to 70°C fanless operation
- Up to 6x GigE ports, supporting 9.5 KB jumbo frame
- M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
- 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
- VGA/ DVI/ DP triple independent display, supporting 4K2K resolution
Certifications
DATASHEET DOWNLOAD GET A QUOTE
Introduction
Introducing Neousys Technology's 2018 flagship rugged fanless embedded computers, the new Nuvo-7000 series, powered by Intel® 9th/ 8th-Gen Core™ i processors with up to 8/ 6-core architecture that offer significant performance improvement over previous 6th and 7th-Gen platforms.
Nuvo-7000 series includes Neousys' track-proven technologies for superior ruggedness and versatility, such as effective fanless design, patented expansion Cassette and proprietary MezIO™ interface. It also incorporates cutting-edge computer I/O like USB 3.1 Gen2 with up to 10 Gbps throughput and M.2 2280 M key socket for NVMe SSD or Intel® Optane™ memory for ultimate system performance. The plethora of on-board I/O ports (GbE, USB and COM) feature sophisticated protection circuits to endure stress from ESD and power surge. This makes Nuvo-7000 series by far the most rugged embedded computer we've ever created.
Flexible and versatile for a variety of applications, Nuvo-7000 variants are available with different Cassette expansion options. With Neousys Nuvo-7000 series, you get a true rugged platform that can accommodate a single PCIe card (Nuvo-7000E), dual PCIe cards (Nuvo-7000DE) or a single PCI card (Nuvo-7000P) according your application needs.
Product Highlights
9th/ 8th-Gen Core i CPU
Powered by Intel® 9th/ 8th-Gen Core™ processor running with advanced Intel® Q370 chipset, The Nuvo-7000 series fanless embedded computer provides outstanding performance for emerging high-end requirement than 6th & 7th generations.
Wide Temperature Range Operation
The Nuvo-7000 series fanless embedded computer has patented passive cooling thermal design that can effectively channel heat from heat sink and truly operate in wide temperature range from -25℃ to 70℃ while under 100% CPU loading.

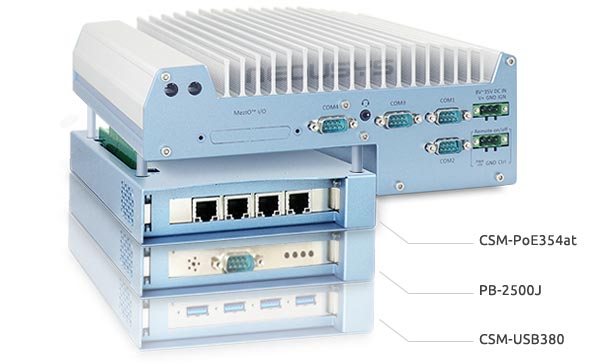

Patented Expansion Cassette
Neousys' Patented Cassette is an innovative and brilliant method to accommodate an add-on card. The modularized design offers easy installation/ replacement and the possibility of passive cooling for add-on card brings reliability and flexibility to the system. You can install COTS PCI/PCIe card for function expansion, or choose Neousys' offer of Cassette module with pre-installed heat-spreader to include PoE+, USB 3.1 Gen1 or independent graphics card.

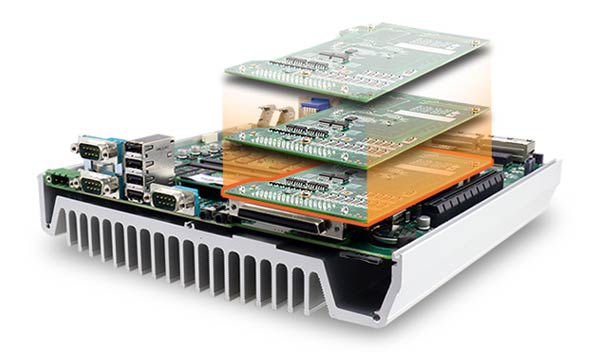

The MezIO™ Interface and Modules
MezIO™ interface is designed for incorporating application-oriented I/O functions into an embedded system. Neousys offers a variety of Nuvo-7000 compatible MezIO™ modules with various I/Os such as RS-232/422/485, isolated DIO and ignition power control. Users can also leverage signals/ power supplied by the MezIO™ interface to customize one's own module. Neousys MezIO™ presents a cost-effective way to build a tailor made embedded system for your application.
