Industrial Ethernet/ Rackmount Ethernet Switches/ ICS-G7526/G7528 Series

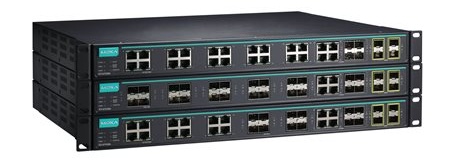

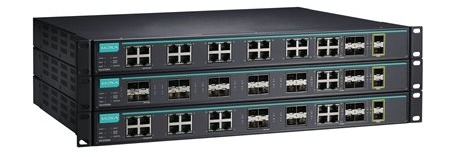

ICS-G7526/G7528 Series
24G+2 10GbE/24G+4 10GbE-port full Gigabit managed Ethernet switches
* The features and specifications of this product are provided here for information purposes only. If you are interested in ordering this product, please contact our sales representative for details.
Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7526/G7528 series full Gigabit backbone switches are equipped with 24 Gigabit Ethernet ports plus up to 4 10 Gigabit Ethernet ports, making them ideal for large-scale industrial networks. The ICS-G7526/G7528’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy protocols, and are fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
Features and Benefits
- DHCP Option 82 for IP address assignment with different policies
- Modbus/TCP industrial Ethernet protocol supported
- Turbo Ring and Turbo Chain, and RSTP/STP (IEEE 802.1w/D)
- IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
- IEEE 802.1Q VLAN and GVRP to ease network planning
- QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
- IEEE 802.3ad, LACP for optimum bandwidth utilization
- IEEE 802.1X, HTTPS, and SSH to enhance network security
- SNMPv1/v2c/v3 for different levels of network management
- RMON for efficient network monitoring and proactive capability
- Bandwidth management ensures stable network performance
- "Lock port" to restrict access to authorized MAC addresses
- Port mirroring for online debugging
- Automatic warning by exception through email and relay output
- Configurable by web browser, Telnet/serial console, Windows utility, and ABC-01 automatic
