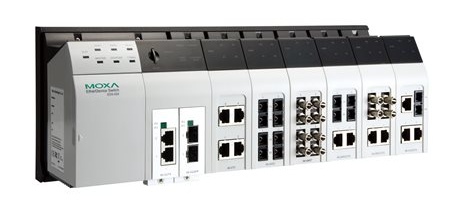

EDS-828 Series

24+4G-port Layer 3 Gigabit modular managed Ethernet switch

The EDS-828 is a high-performance Layer 3 Ethernet switch designed for network routing. The improved hardware technology built into the EDS-828 replaces the software logic used by traditional routers,offering better performance, and making the switch ideal for largescale local area networks (LANs). In addition to Layer 3 features, the EDS-828 also supports advanced management and security features. In order to meet the demands of any industrial application, the EDS-828 uses a modular design that allows users to install up to 4 Gigabit Ethernet ports and 24 fast Ethernet ports, providing a high degree of flexibility for network expansion.

This product supports expansion modules. Click here for info on available modules.

Datasheet Download

Features and Benefits:

• Layer 3 switching functionality to move data and information across networks
• Command Line Interface (CLI) for quickly configuring major managed functions*
• Supports advanced VLAN capability with Q-in-Q tagging*
• IEEE 1588 PTP V2* (Precision Time Protocol) for precise time synchronization of networks
• DHCP Option 82 for IP address assignment with different policies
• Support EtherNet/IP* and Modbus/TCP protocols for device management and monitoring
• Compatible with EtherNet/IP and PROFINET protocols for transparent data transmission
• Redundant Gigabit Turbo Ring, Turbo Chain, RSTP/STP, and MSTP* for network redundancy
• IGMP snooping and GMRP for filtering multicast traffic
• IEEE 802.1Q VLAN and GVRP protocol to ease network planning
• QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
• Port Trunking for optimum bandwidth utilization
• TACACS+*, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
• SNMPv1/v2c/v3 for different levels of network management
• RMON for efficient network monitoring and proactive capability
• Bandwidth management prevents unpredictable network status
• Lock port for only authorized MAC address access
• Port mirroring for online debugging
• Automatic warning by exception through e-mail, relay output
• Digital inputs to integrate sensors and alarms with IP networks
• Redundant, dual DC power inputs
• Configurable by Web browser, Telnet/Serial console, CLI*, Windows utility, and ABC-01 automatic backup configurator

*Available in Q3, 2011
