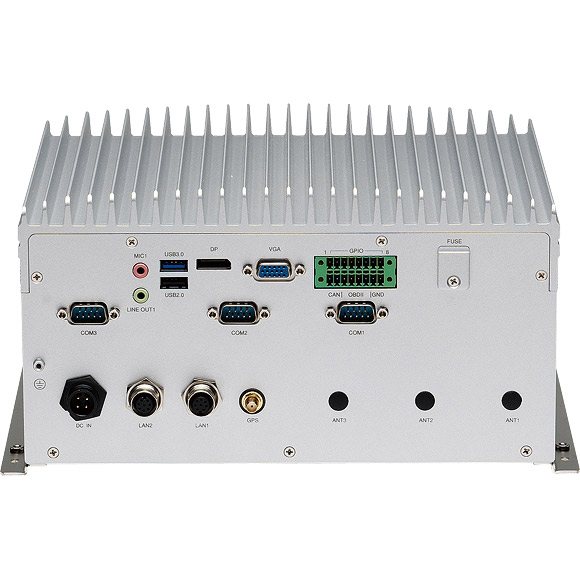

VTC 7220-R

Intel® Core™ i7-4650U Fanless Rolling Stock Computer with EN50155 Conformity

VTC7220-R features powerful new generation Intel® Core™ processor i7-4650U. Its CPU performance gives users the ability to adapt to what they need in any rolling stock applications. Its Intel® HD graphics 5000 engine allows users to fully take advantage of VTC7220-R to achieve smooth, seamless and stunning graphic performance on 3 different video outputs (VGA, DP, LVDS). VTC7220-R is equipped with 2 externally accessible SSD/HDD trays; users can easily download or upload the data on other devices by just removing the storage devices from VTC7220-R. By integrating the variety of I/O ports and 4 x mini-PCIe sockets expansibility, VTC7220-R is not only suitable for video surveillance application, but also can meet the demand for other applications, such as infotainment and dispatching system. With dual SIM cards support, VTC7220-R allows three SIM cards backup each other for a better connectivity quality by software. In addition, three SIM cards + dual WWAN modules architecture can increase the bandwidth for a faster data transfer speed. Not only data transmission, VTC7220-R also supports two-way voice communication. Equipped with intelligent power management, VTC7220-R can be waked on by ignition, RTC timer or SMS/Ring remotely.


Features and Benefits:

  • Intel® Core™ processor dual core i7-4650U
  • Three SIM cards + dual WWAN modules support
  • Dual accessible & hot swappable SATA 3.0 SSD/HDD (RAID 0/1)
  • Built-in u-blox NEO-M8 module
  • Built-in CAN 2.0B. Optional CAN/OBDII module
  • Wake on RTC/SMS via WWAN module
  • Voice communication via WWAN module
  • EN50155 conformity
  • 4 x mini-PCIe socket rich expansion capability
  • Isolated Power
