MPC-2240 Series

Marine Panel Computers with Intel® Ivy Bridge Celeron® CPU Processor 1.40 GHz, VGA, DVI, audio, Gigabit LANs, serial ports, USB 2.0 ports

MPC-2070 Series

Introduction

Moxa's MPC-2240 series received the prestigious Red Dot Product Design Award for 2014. The MPC-2240 is a sleek, buttonless, 24 inch flat-glass panel computer designed for marine navigation applications and pre-calibrated for ECDIS use. Powered by a fanless Intel® Ivy Bridge Celeron® CPU (default: 2M Cache, 1.40 GHz) or a 3rd generation Core® i3 (or i7) CPU (on request), the MPC-2240 provides 4 GB system memory (expandable to 16 GB), allowing for fast graphics suitable for a wide variety of marine applications.

Fanless + High Performance Design

Rigorous Chamber Testing

The MPC-2240 was built with a modular design to help reduce deployment costs and overall time-to-market by allowing convenient and rapid integration into a wide variety of systems. Though it has no installed fans of any sort, the MPC-2240’s careful thermal engineering gives this panel computer steady reliability when working through the heat extremes common in industrial marine environments, and the IP22 rated enclosure provides strong, durable protection against moisture, dust, and other environmental hazards. These computers are compliant with a variety of marine standards, including IEC 60945, DNV, and IACS E10, and may also be ordered with ECDIS IEC 61174 type approved model for use in bridge navigation systems.

ECDIS with Innovative Features

The MDC-2240 series are certified for use as an ECDIS display station. Carefully engineered to meet the strict challenges posed by ocean environments, the MDC-2240 series are distinct from other ECDIS-certified displays thanks to the inclusion of some innovative design features. The latest advancement offered by the MPC-2240 series are its SavvyTouch controls. The MPC-2240 SavvyTouch controls are equipped with a proximity switch that lights up the controls with a mere wave of the hand. This makes it possible for users to make adjustments to the display even in the absolute dark. At the same time, the SavvyTouch controls also provide a System Information button that will return a quick rundown of hardware health that will report on power, component, memory and video failures from the BIOS level. If the MPC-2240 fails to boot up for any reason, users can quickly discover what the problem is with a simple press of its Info button.

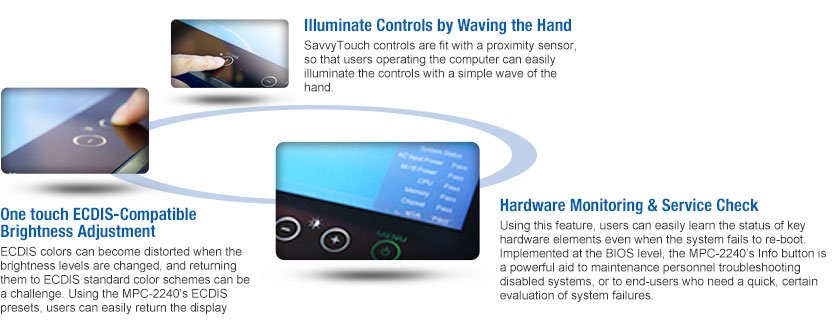

Smart ECDIS OSD

Learn more about MPC-2240 here

Moxa's MPC-2240 series received the prestigious Red Dot Product Design Award for 2014. The MPC-2240 is a sleek, buttonless, 24 inch flat-glass panel computer designed for marine navigation applications and pre-calibrated for ECDIS use. Powered by a fanless Intel® Ivy Bridge Celeron® CPU (default: 2M Cache, 1.40 GHz) or a 3rd generation Core® i3 (or i7) CPU (on request), the MPC-2240 provides 4 GB system memory (expandable to 16 GB), allowing for fast graphics suitable for a wide variety of marine applications.

DATASHEET DOWNLOAD


Features

  • 24 inch with 16:9 wide screen and 1920x1080 Full HD Panel Computer
  • Color Calibrated for ECDIS compliant
  • Fanless system designed with FloTHERM®
  • SavvyTouch display controls
  • 3rd Generation Intel® Core™ to Celeron® processor (Default: Celeron® 1047UE, 1.40 GHz with Intel® HD Graphics)
  • Built-in NMEA0183 and 3-in-1 software selectable RS-232/422/485 interfaces (DI/DO and LPT available on request)
  • Multi-power supplies (AC & DC)
  • Optical bonded and touch panel available on request
