ioPAC 8020-C

Modular RTU Controller

ioPAC 8020-C

Features and benefits:

  • Compliant with EN 50121-3-2, EN 50121-4 and essential sections of EN 50155
  • Supports C/C++ programming languages
  • 2-port Ethernet switch for daisy-chain topologies with by-pass function
  • Modular I/O for versatility, flexibility and scalability
  • Rugged and compact design for harsh environments
  • Wide operating temperature: -40 to 75°C (-40 to 167°F)
  • 3-in-1 RS-232/422/485 serial port
  • Up to 32GB SDHC data logging function



DATASHEET DOWNLOAD   GET A QUOTE


Introduction

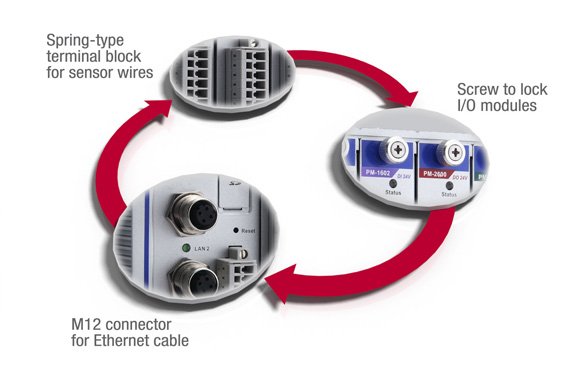

Compact, Anti-Vibration Design

The ioPAC 8020--a rugged modular RTU controller with 5 or 9 I/O slots--supports a wide selection of I/O modules and comes with a DIN rail mount specifically designed to withstand severe vibrations. This RTU features an aluminum chassis for vandal protection, spring-type terminal blocks for gas-tight and vibration resistant wire contacts, and optional M12 connectors to ensure that your Ethernet connectors remain connected at all times.

Compact, Anti-Vibration Design

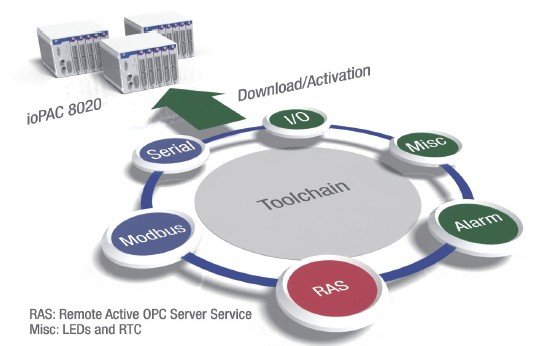

Innovative C/C++ Programming with Timesaving I/O Access and Control

The ioPAC 8020-C further features a Linux/GNU platform adapted to data acquisition and condition monitoring. The main advantage of this open C platform is its user-friendly SDK, which helps economize on installation and configuration overhead by reducing your programming workload for key areas like I/O control and condition monitoring, SCADA/DB interoperability, and improving smart communication controls.

Innovative C/C++ Programming

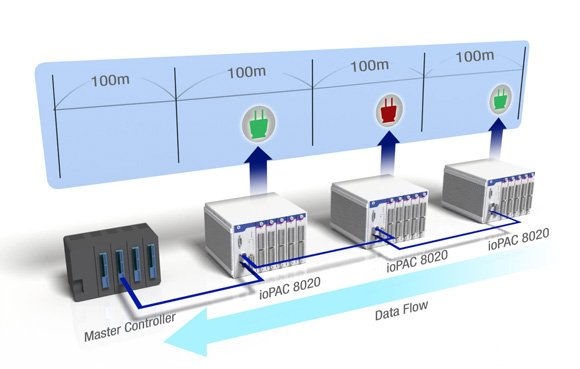

Seamless Data Transmissions with Ethernet by-pass Function

The ioPAC RTU controllers have a built-in Ethernet switch with 2 ports for cascading multiple ioPAC RTU controllers in a convenient daisy-chainin configuration. Together with a poweroff bypass mechanism, the ioPAC RTU controllers can maintain continuous, seamless data transmissions even when one of the RTUs fails.

Seamless Data Transmissions
