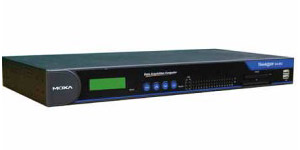

DA-662-I
RISC-based 19-inch Rack-mounted Data Acquisition Embedded Computer with 16 Serial Ports, Quad LANs, PCMCIA, CompactFlash, USB
Features and Benefits
- Intel XScale IXP-425 533 MHz processor
- 128 MB RAM on-board, 32 MB flash disk
- 2 KV optical protection for serial ports
- 16 software-selectable RS-232/422/485 serial ports
- Quad 10/100 Mbps Ethernet
- Wide range of power input voltages from 100 to 240V, both AC and DC
- Supports PCMCIA CardBus for WLAN 802.11b/g wireless network
- Provides CompactFlash and USB slots for storage expansion
- Standard 19-inch, 1U and rackmount installation
- LCM display and keypad for HMI
- Ready-to-Run Linux or WinCE 5.0 communication platform
- Robust, fanless design
Overview
The DA-662-I embedded computers come with 16 software-selectable RS-232/422/485 serial ports with 2 KV optical isolation protection, making them suitable for a variety of industrial applications, and four 10/100 Mbps Ethernet ports for network redundancy. In addition, the DA-662-I-LX has a PCMCIA socket for 802.11b/g wireless LAN card expansion, and the CompactFlash and USB sockets make it easy to expand data capacity. This combination of features gives users an ideal, robust, and reliable solution for harsh industrial environments.
You may choose from the pre-installed, ready-to-run, open standard Linux OS, or the more common WinCE OS for your software program development. The built-in SDK provides a convenient tool for developing control programs, and follows the common programming procedures used on a standard PC. The software you develop for your own applications can be stored in the onboard Flash memory. The DA-662-I computer makes it easy to build control systems with distributed architecture on embedded technologies such as for SCADA systems, plant floor automation, and power electricity monitoring.
