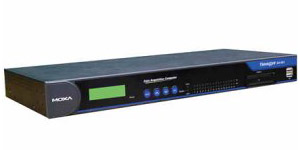

DA-661
RISC-based 19-inch rackmount data acquisition fanless computers with 16 serial ports, dual LANs, PCMCIA, CompactFlash, USB
Features and Benefits
- Intel XScale IXP-425 533 MHz processor
- 128 MB RAM on-board, 32 MB flash
- 16 software-selectable RS-232/422/485 serial ports
- Dual 10/100 Mbps Ethernet for network redundancy
- 15 KV ESD protection for all serial signals
- Supports PCMCIA CardBus for WLAN 802.11b/g wireless network
- CompactFlash and USB slots for storage expansion
- Standard 19-inch rackmount, 1U height installation
- Wide range of input voltages from 100 to 240 V AC/DC
- LCM display and keypad for HMI
- Ready-to-run Linux or Windows CE 5.0 platform
- Robust, fanless design
Overview
The DA-661 embedded computers come with 16 software-selectable RS-232/422/485 serial ports, making them suitable for a variety of industrial applications, and two 10/100 Mbps Ethernet ports are included for network redundancy. In addition, the DA-661 has a PCMCIA socket to provide 802.11 b/g wireless LAN card expansion, and the CompactFlash and USB sockets make it easy to add more memory. This combination of features gives users an ideal, robust, and reliable solution for harsh industrial environments.
